Хомуты с демпфирующей вставкой/

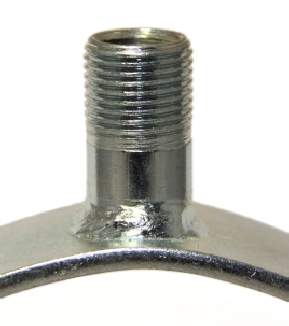

MASIV Хомут двухвинтовой с универсальной гайкой

MASIV OBJÍMKA DVOUŠROUBOVÁ S UNI MATICÍ (M12, M16, 1/2”)
MASIV OBJÍMKA DVOUŠROUBOVÁ S UNI MATICÍ (M12, M16, 1/2”)
MASIV OBJÍMKA DVOUŠROUBOVÁ S UNI MATICÍ (M12, M16, 1/2”)
  • Технические данные
  • материал: сталь
  • оцинковано
  • звуко-изоляционная вставка: SBR/EPDM
Артикул
CAD
Диаметр D (mm)
M
L (mm)
S x t (mm)
Fa,z (N)
Упаковка шт
Количество упаковок
Запрос
Артикул CAD Диаметр D (mm) M L (mm) S x t (mm) Fa,z (N) Упаковка шт Количество упаковок Запрос
317000046 - 40-46 M12, M16,1/2" 131 40x4 9500 1
317000053 - 48-53 M12, M16,1/2" 138 40x4 9500 1
317000064 60-64 M12, M16,1/2" 149 40x4 9500 1
317000071 - 67-71 M12, M16,1/2" 157 40×4 9500 1
317000078 - 72-78 M12, M16,1/2" 165 40×4 9500 1
317000092 - 87 - 92 M12, M16,1/2" 170 40×4 9500 1
317000118 - 108 - 118 M12, M16,1/2" 210 40×4 9500 1
317000130 - 125 - 130 M12, M16,1/2" 227 40×4 9500 1
317000137 - 133 - 137 M12, M16,1/2" 228 40×4 9500 1
317000144 - 138 - 144 M12, M16,1/2" 245 40×4 9500 1
317000165 - 159-165 M12, M16,1/2" 260 40×4 9500 1
317000170 - 164 - 170 M12, M16,1/2" 272 40×4 9500 1
317000188 - 182 - 188 M12, M16,1/2" 275 40×4 9500 1
317000203 - 193 - 203 M12, M16,1/2" 300 40×4 9500 1
317000214 - 208 - 214 M12, M16,1/2" 300 40×4 9500 1
317000224 - 217 - 224 M12, M16,1/2" 310 40×4 9500 1
317000254 - 244 - 254 M12, M16,1/2" 345 40x4 9500 1
317000277 - 267 - 277 M12, M16,1/2" 365 40x4 9500 1
317000282 - 278 - 282 M12, M16,1/2" 380 40x4 9500 1
317000318 - 313 - 318 M12, M16,1/2" 420 40×4 9500 1
317000326 - 320-326 M12, M16,1/2" 415 40×4 9500 1
317000360 353-360 M12, M16,1/2" 455 40×4 9500 1
